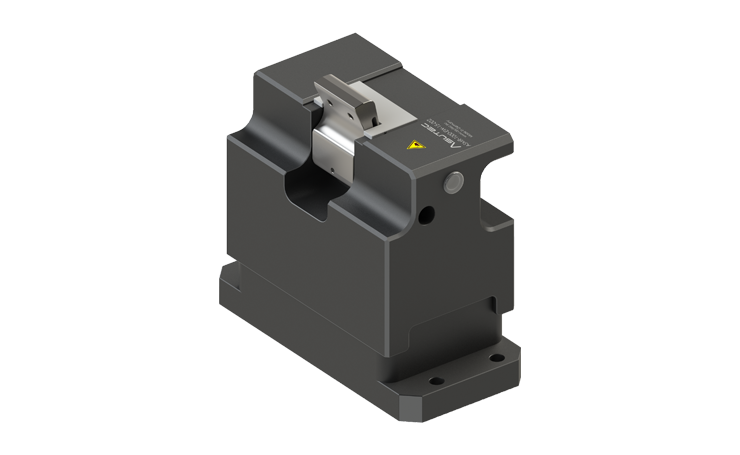

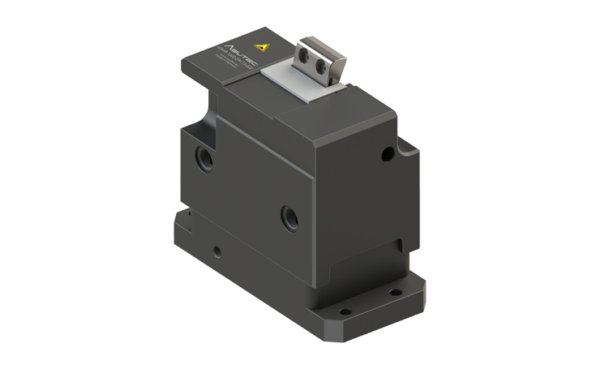

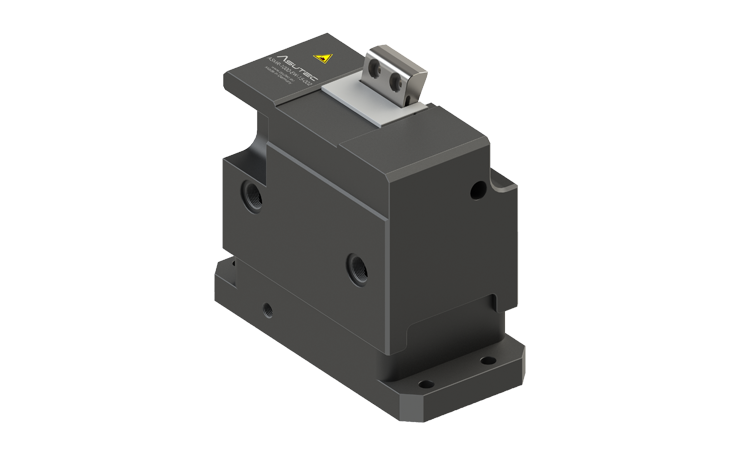

Stop module with damping ASMR-1000-002

For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.

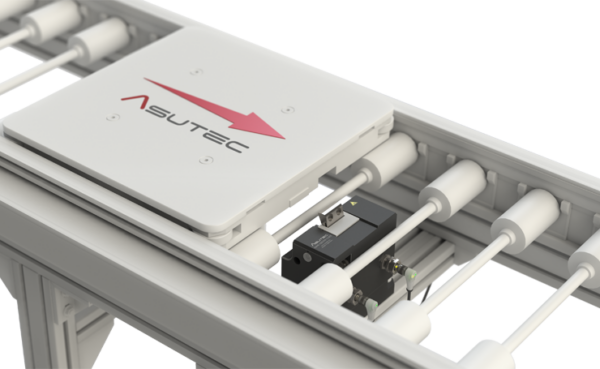

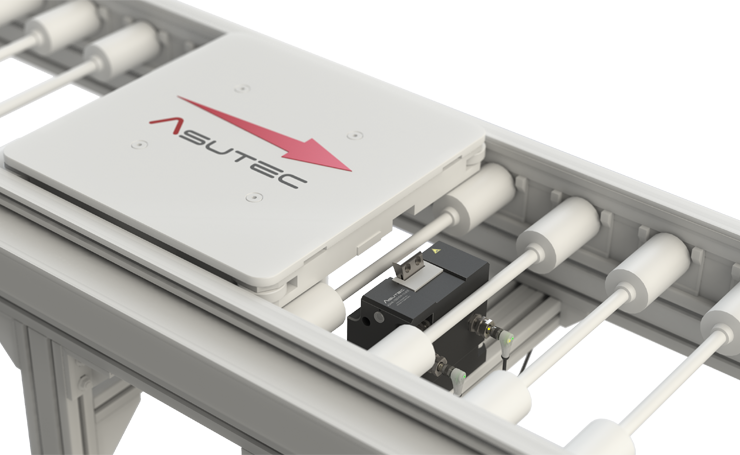

Suitable for tight installation spaces, for example between the rollers in a roller conveyor system.

Technical data

TYPE

Pneumatic separator. Housing hard-anodized aluminium.
Allowed workpiece carrier load up to 1000 kg (see table).

WEIGHT DATA

All weight data relates to the total weight of the workpiece pallet (pallet with material), not the maxial force.

MAX. RAM PRESSURE

Dependent on friction between workpiece pallet and conveyor system, workpiece pallet and stop plate, pneumatical pressure and ambient conditions.

SPRING FORCE EW

Upper position: 220 N
Lower position: 292 N

EW (SINGLE ACTING)

When depressurized the separator goes into the lock position via spring and the pallet will be stopped.
https://www.asutec.de/wp-content/uploads/2023/06/23-asmr-1000-ew-002.png

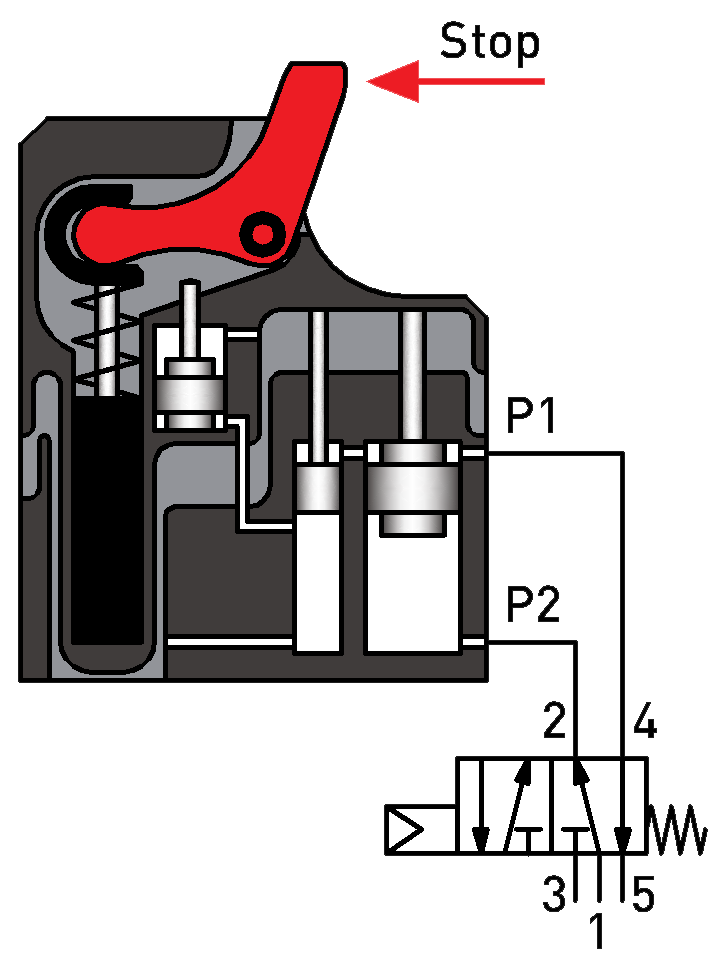

DW (DOUBLE ACTING)

When depressurized the separator keeps its last position. The lowering force is higher as there is no spring.
https://www.asutec.de/wp-content/uploads/2023/06/24-asmr-1000-dw-002.png

CONNECTION

Pneumatic connection: G 1/8″
Working pressure: treated compressed air 4 – 8 bar

SCOPE OF SUPPLY

The items will be delivered without accessories.
Accessories can be freely selected according to the ambient conditions.
All supplied accessory parts are mounted by customer request.

MAINTENANCE

No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.

Variants

No items found

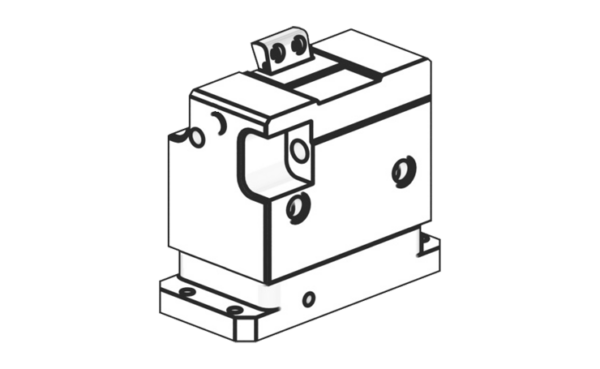

ASMR-1000-EW-15-002

Stop module with damping for workpiece carrier loads up to 1000 kg
Single acting function, 15 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

ASMR-1000-DW-15-002

Stop module with damping for workpiece carrier loads up to 1000 kg
Double acting function, 15 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
