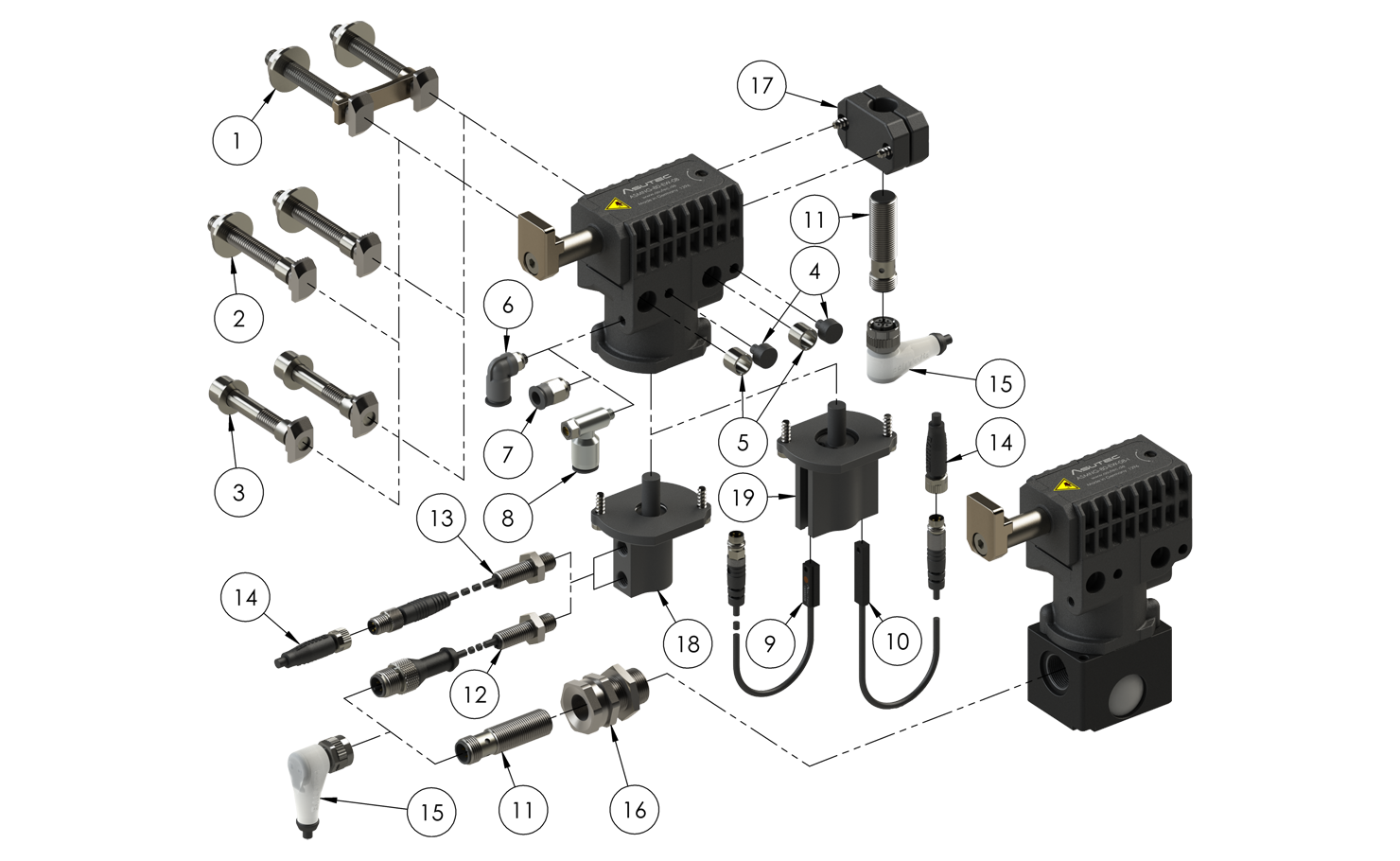

ASMNG-80 - Accessories
Overview accessories ASMNG-80 – PDF
No items found
75000001
Fastening set A, consisting of hammer screws flange nuts, distortion lock, long guide sleeves.
For 10 mm profile slot.
Usually for Asutec devices: ASU-120, ASU-400, ASM-60, ASMHS-60, ASREL-003, ASB-60-EW-08
For 10 mm profile slot.
Usually for Asutec devices: ASU-120, ASU-400, ASM-60, ASMHS-60, ASREL-003, ASB-60-EW-08
75000036
Fastening set, consisting of: Hammer screws, flange nuts, long guide sleeves.
For 10 mm profile slot.
For 10 mm profile slot.
75000002
Fastening set B, consisting of screws, hammer nuts, short guide sleeves.
For 10 mm profile slot.
For 10 mm profile slot.
65104950
Long guide sleeve
D=10,13mm-0,02mm
d=8,2mm+0,1mm
L=8mm-0,1mm
D=10,13mm-0,02mm
d=8,2mm+0,1mm
L=8mm-0,1mm
14010006
Supply air one way flow valve
M5, for tubing outside-Ø6mm
M5, for tubing outside-Ø6mm
15000028
Magnetic field sensor for T-slots; 0,34 m cable
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000000
For T-slots; 0,3 m cable
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000004
Size M12x1; (Ø12 x 45 mm); Sn = 4 mm; for flush mounting
Connection: M12x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M12x1 connector, 3-pin
Switching output: PNP (NO)
15000033
Size M8x1 with 0,3 m cable (Ø3x30mm)
Sn = 1,5 mm; for flush mounting
Connection: M12x1 connector; 4-pin - A-coded
Switching output: PNP (NO)
Sn = 1,5 mm; for flush mounting
Connection: M12x1 connector; 4-pin - A-coded
Switching output: PNP (NO)
15000045
Size M8x1 with 0,3 m cable (Ø3x30mm)
Sn = 1,5 mm; for flush mounting; connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Sn = 1,5 mm; for flush mounting; connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15010000
M8x1 female connector, straight,
3-pin, 3-wire, A-coded,
5 m cable lenght
3-pin, 3-wire, A-coded,
5 m cable lenght
15010001
M12x1 female connector, angled,
LEDs yellow+green, 5-pin, 3-wire,
A-coded, 5 m cable lenght
LEDs yellow+green, 5-pin, 3-wire,
A-coded, 5 m cable lenght
15030001
M16x1, short version,
for sensors M12x1 with fastening length
36 mm and longer
for sensors M12x1 with fastening length
36 mm and longer
75003073 Switch bracket
Switch bracket for Sensor Ø12 or M12x1
To query the workpiece carrier position.
from below. For ASMNG-80
To query the workpiece carrier position.
from below. For ASMNG-80
75003075 Position detection
Position detection for ASMNG-80
Can be retrofitted for the inductive query of the upper and lowered position with inductive sensors M8x1
Can be retrofitted for the inductive query of the upper and lowered position with inductive sensors M8x1
75003083 Position detection
Position detection for ASMNG-80
Can be retrofitted for the query of the upper and lowered position with T-slot magnetic field sensors
Can be retrofitted for the query of the upper and lowered position with T-slot magnetic field sensors
