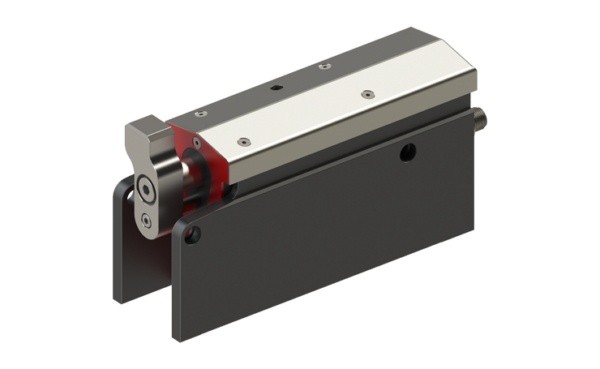

Stop module with damping ASMEL-120
For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.
Ideal for medium-sized transfer systems such as Bosch Rexroth TS2.
Technical data
EXECUTION AND WEIGHT
Device design: Basic housing made of hard anodized aluminum and stop plate made of hardened steel. Air damping system, adjustable damping effect
Weights of the devices:
ASMEL-120-DW-09-G5: 2,3 kg
CYCLE TIMES
Time to lower the stopper: 0.4 seconds
Time to rise up the stopper: 0.3 seconds
Minimum cycle time: 3.5 seconds
FUNCTION
The electrical separator ASMEL-120 is a separators with damping. The damping is with air and can be finely adjusted via a throttle screw.
Further information are provided in the operating manual.
ELECTRICAL CONNECTION
For normal operation, the separator is connected to the actuator connection (X1 Act) and to the sensor connection (X2 Sens). Both connectors have a size M12x1 and have 5-pins.
Further information are provided in the operating manual.
POWER SUPPLY
24 Volt ± 15%, with reverse polarity protection. If the voltage is higher or lower, the Power LED starts flashing in 0.25 second intervals. No more commands are executed. If the voltage range is between 20V and 28V again, then the Power LED is permanently on. The separator is then ready for use again.
POWER CONSUMPTION
Residual current: 0.1 A
Rated current 2,0 A
The current consumption of the separator takes place via the supply voltage of the actuator-connection (pin 4).
INPUT
High-Pegel > 19 V
Low-Pegel < 8 V
OUTPUTS
High-Level = supply voltage – 1,2 V ( approx. 20 V … 27 V)
Low-Level < 1 V
LEDs
The LED „PW’ (power) lights up green in normal operation
OPEN: The LED “NO” (opened) lights up yellow when the stop module is open (lowered).
CLOSED: The LED “NC” (closed) lights up yellow when the stop module is closed (in upper position).
TEMPERATURE RANGE
+ 5°C up to + 60°C (without accessories)
Too many different variations? - Find the suitable product!
Variants
ASMEL-120-DW-09-G5
Double acting function, 9 mm lowering stroke
Connection G5: 5-pin connector M12x1 for actuators and sensors
